Product Summary
The FLC38XGC6V-06 is a LCD module. It has a TFT active matrix type liquid crystal panel 1024×768 pixels, and diagonal size of 38cm (15.0-inch). This module supports 1024×768 XGA mode (Non-interlace). This LCD has a digital RGB interface and can display 262,144 colors. The FLC38XGC6V-06 is applied to the 15.0 in. XGA supported TFT-LCD module.
Parametrics
FLC38XGC6V-06 absolute maximum ratings: (1)On the condition of Ta=25℃, Supply Voltage VCC: min=-0.3V, max=6.0V; (2)On the condition of Ta=25℃, Input Voltage VIN: min=-0.3V, max=Vcc+0.3V.
Features
FLC38XGC6V-06 electrical specifications: (1)Supply Current ICC: typ=380mA, max=800mA; (2)H Level Logic Input Voltage VIH: min=2.3V, max=VCC V; (3)L Level Logic Input Voltage VIL: min=VSS V, max=0.9V; (4)Leak Current(Logic Input) IIL: min=-5μA, max=+5μA; (5)Supply Rush Current ISCC: max=5.5A; (6)Supply Rush Current Duration (1A excess) TSCC: max=0.4ms; (7)Contrast Regulation VR RVR: min=0, max=100kΩ.

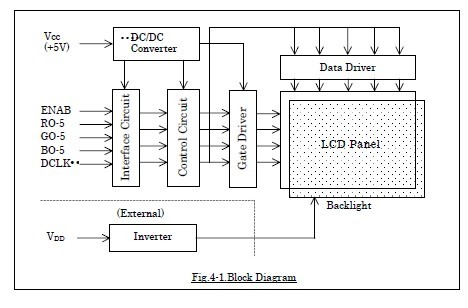

Diagrams
