Product Summary
The LQ10D367 is a color TFT-LCD module.
Parametrics
LQ10D367 absolute maximum ratings: (1)Display size 26 [10.4] cm; (2)Brightness 200 cd/m2; (3)Dot format (H x V) 640 x RGB x 480 dot; (4)Contrast ratio 300 : 1; (5)Dot pitch (H x V) 0.11 x 0.33 mm; (6)Power consumption 4.4 W; (7)Active area (H x V) 211.2 x 158.4 mm; (8)Outline dimensions (W x H x D) 246.5 x 179.4 x 10.5 mm; (9)Color 262 144; (10)Weight 550 g; (11)Input signal 6-bit Digital RGB; (12)Operating temperature 0 to +50 ℃; (13)Viewing direction 6:00; (14)Storage temperature -25 to +70 ℃.
Features
LQ10D367 features: (1)26 cm [10.4"] VGA format; (2)High brightness (200 cd/m2); (3)Wide viewing angle; (4)Built-in long life CCFT backlight (50 000 h).

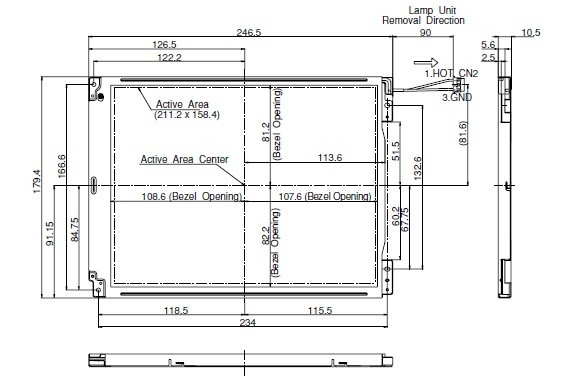

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ10D367 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
