Product Summary

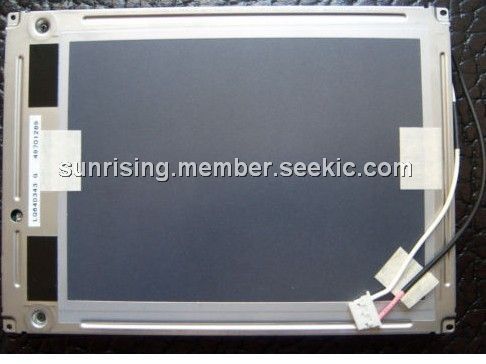

The LQ64D343 is a color TFT-LCD module.
Parametrics
LQ64D343 specifications: (1)Display size: 16 [6.4] cm; (2)Brightness: 300cd/m2; (3)Dot format (H × V): 640 × RGB × 480 dot; (4)Contrast ratio: 300:1; (5)Dot pitch (H × V): 0.068 × 0.202 mm; (6)Power consumption: 5.57W; (7)Active area (H × V): 130.6 × 97.0 mm; (8)Outline dimensions (W × H × D): 175.0 × 126.5 × 12.0 mm; (9)Color: 262 144; (10)Weight: 290 g; (11)Input signal: 6-bit Digital RGB; (12)Operating temperature: 0 to +50 ℃; (13)Viewing direction: 6:00; (14)Storage temperature: -25 to +70 ℃; (15)Backlight type: 2CCFT(E).
Features
LQ64D343 features: (1)16 cm [6.4] VGA format; (2)Anti glare treatment; (3)Built-in long life CCFT backlight (50 000 h); (4)High brightness (300 cd/m2); (5)Low reflectance; (6)Wide viewing angle(Horizontal: 120° Vertical: 90°).

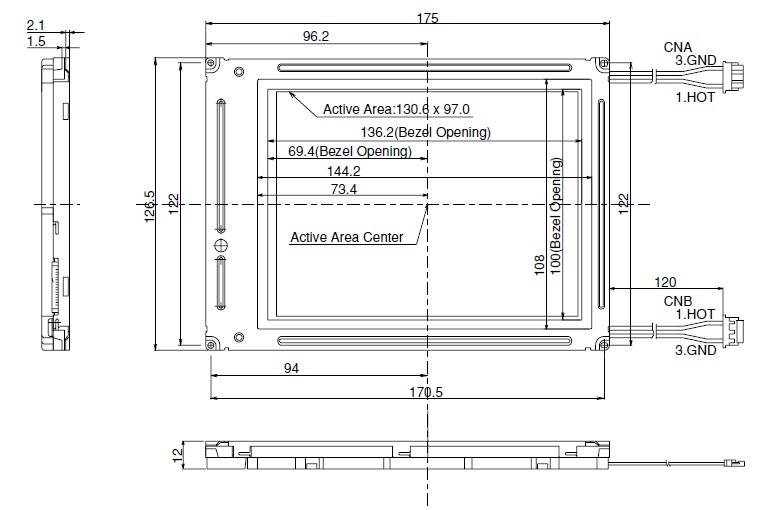

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ64D343 |
Sharp Microelectronics |
TFT Displays & Accessories 6.4" 6 Bit 350 nit 640x480 (2xCCFT) |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
LQ64D341 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LQ64D343 |
Sharp Microelectronics |
TFT Displays & Accessories 6.4" 6 Bit 350 nit 640x480 (2xCCFT) |
Data Sheet |
Negotiable |
|
||||
|
LQ64SP1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
