Product Summary

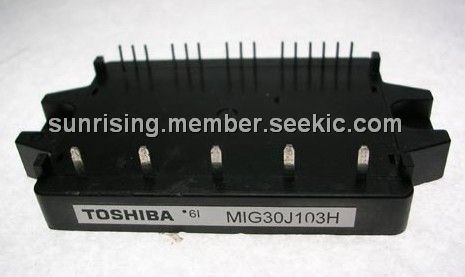

The MIG30J103H is a TOSHIBA intelligent power module. The applications of the MIG30J103H include high power switching applications, motor control applications.
Parametrics
MIG30J103H absolute maximum ratings: (1)supply voltage: 400 V; (2)collector-emitter voltage: 600 V; (3)collector current (DC): 30 A at Tc=25℃; (4)collector power dissipation: 83 W at Tc=25℃; (5)junction temperature: 150℃; (6)operating temperature: -20 to +100℃; (7)storage temperature range: -40 to +125℃; (8)isolation voltage: 2500 Vrms.
Features
MIG30J103H features: (1)intelligent power module that include IGBT drive circuits, overcurrent, undervoltage lockout, and pvertemperature protection; (2)the electrodes are isolated from case; (3)high speed type IGBT: VCE(sat)=2.7 V max, toff=2.0μs max, trr=0.25μs max; (4)outline: TOSHIBA 2-99E1A; (5)weight: 80g.
