Product Summary

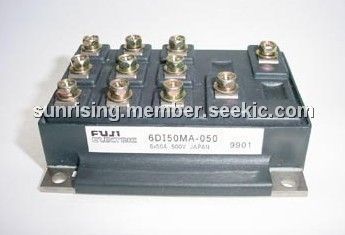

The 6DI50MA-050 is a power transistor module. The applications of the 6DI50MA-050 include general purpose inverter, uninterruptible power suply, servo and spindle drive for NC machine tools, robotics and so on.

Parametrics

6DI50MA-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC at DC: 50A; (6)ICP at 1ms: 100A; (7)-IC at DC: 50A; (8)IB at DC: 3A; (9)IBP at 1ms: 6A; (10)PC at one transistor: 230W; (11)PC at six transistor: 1380W; (12)Tj: 150℃; (13)Tstg: -40 to 125℃; (14)m: 450g; (15)Visol at AC.1min: 2500v; (16)mounting: 3.5 N.m; (17)terminal: 1.7 N.m.

Features

6DI50MA-050 features: (1)high DC current gain; (2)High speed switching.

Diagrams

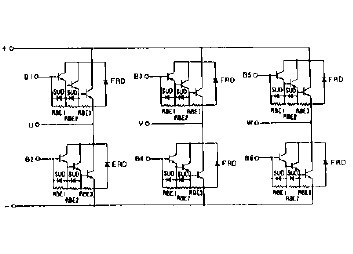

6DI50MA-050 diagram
