Product Summary
The 70MT120KB is a three phase bridge international rectifier. A range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation. 70MT120KB is intended for use in general purpose and heavy duty applications.
Parametrics
70MT120KB absolute maximum ratings: (1)IO: 70 (90) A; @ TC: 85 (57) ℃; (2)IFSM @ 50Hz: 480 A; @ 60Hz: 500 A; (3)I2t @ 50Hz: 1150 A2s; @ 60Hz: 1050 A2s; (4)I2√t: 11500 A2√s; (5)VRRM range: 800 to 1600 V; (6)TSTG range: - 40 to 150 ℃; (7)TJ range: - 40 to 150 ℃.
Features
70MT120KB features: (1)Package fully compatible with the industry standard INT-Apak; (2)power modules series; (3)High thermal conductivity package, electrically insulated case; (4)Outstanding number of power encapsulated components; (5)Excellent power volume ratio, outline for easy connections to power transistor and IGBT modules; (6)4000 VRMS isolating voltage; (7)UL E78996 approved.

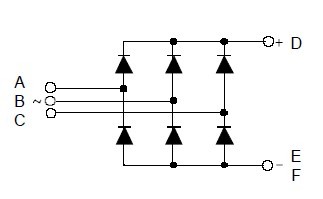

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 70MT120KB |
|
RECT BRIDGE 1200V 70A INT-A-PAK |
Data Sheet |
Negotiable |
|
||||
