Product Summary

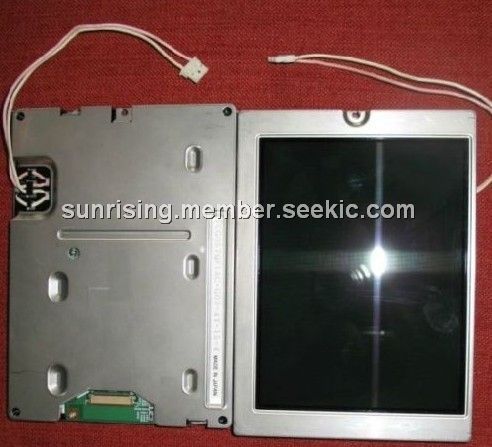

The KG057QV1CA-G03 is a 5.7 inch LCD screen display. The applications of it are Industrial control, Maintenance for Mechanic etc.
Parametrics
KG057QV1CA-G03 general specifications: (1)Panel Type: STN; (2)Active Screen Size: 5.7 inch; (3)Brightness(cd/m2): 220; (4)Active area: 117.2*88.4; (5)Pixel Format: 320*240; (6)Contrast ratio: 10:1; (7)Backlight: 1CCFL Lamp; (8)Input voltage: 5V; (9)Response Time(on/off): 210 ms; (10)Outline dimensions(W/H/D)mm: 144.0*1.4.8*12.7; (11)Operating temperature: 0 to 60 ℃; (12)Storage temperature: -20 to 60 ℃.
