Product Summary

The BT138 is a Triacs sensitive gate. Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications of the BT138 include motor control, industrial and domestic lighting, heating and static switching.

Parametrics

BT138 absolute maximum ratings: (1)Repetitive peak off-state voltages, VDRM: 500 to 800 V; (2)RMS on-state current IT(RMS): 12 A; (3)On-state current, t= 20 ms, ITSM: 95 A; t= 16.7 ms, ITSM: 105 A; (4)I2t for fusing, I2t: 45 A2s; (5)Peak gate current, IGM: 2 A; (6)Peak gate voltage, VGM: 5 V; (7)Peak gate power, PGM: 5 W; (8)Average gate power over any 20 ms period, PG(AV): 0.5 W; (9)Storage temperature, Tstg: -40 to 150℃; (10)Operating junction temperature, Tj: 125℃.

Features

BT138 features: (1)VDRM, Repetitive peak off-state voltages: 500 to 800 V; (2)IT(RMS), RMS on-state current: 12 A; (3)ITSM, Non-repetitive peak on-state: 95 A.

Diagrams

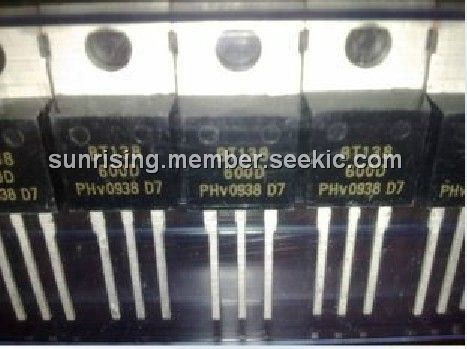

BT138 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BT138
BT138
Other

Data Sheet
Negotiable
BT138-500E
BT138-500E
Other

Data Sheet
Negotiable
BT138-600
BT138-600
Other

Data Sheet
Negotiable
BT138-600,127
BT138-600,127
NXP Semiconductors
Triacs RAIL TRIAC
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.38
100-250: $0.34
BT138-600/DG,127
BT138-600/DG,127
NXP Semiconductors
Triacs 4Q TRIAC
Data Sheet
0-1: $0.51
1-25: $0.46
25-100: $0.40
100-250: $0.35
BT138-600D,127
BT138-600D,127
NXP Semiconductors
Triacs Thyristor TRIAC 600V 105A 3-Pin (3+Tab)
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.38
100-250: $0.34
BT138-600E
BT138-600E
NXP Semiconductors
Triacs RAIL TRIAC
Data Sheet
Negotiable
BT138-600E,127
BT138-600E,127
NXP Semiconductors
Triacs RAIL TRIAC
Data Sheet
0-1: $0.52
1-25: $0.47
25-100: $0.41
100-250: $0.36
