Product Summary

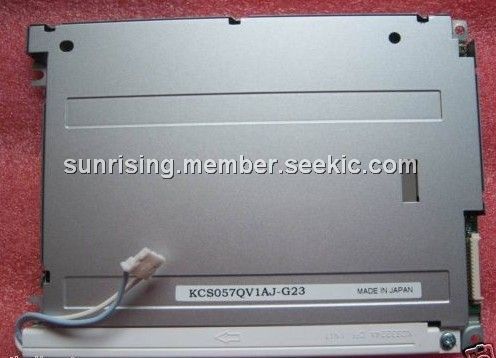

The KCS057QV1AJ-G23 is a 5.7", passive matrix color LCD module. It is designed for display for industrial machine, measuring instrument, chart recorder, scale, POS, ATM, bank terminal, fish finder, gps, sewing machine, musical instrument, etc.
Parametrics
KCS057QV1AJ-G23 specifications: (1)Dot Format: (320×RGB)×240 dot; (2)Dot Pitch: 0.12×0.36 mm; (3)Outline Dimensions: 154.6×114.8×8.5 mm; (4)Mass: 200 g; (5)Contrast Ratio: 40:1; (6)Brightness: 200 (IL=5.0mA) cd/m2; (7)Response Time: 330 ms; (8)Viewing Angle(V/H): 60／100 deg; (9)Power Consumption: 210 (LCD) mW; 1.60 (Backlight) W; (10)Backlight: CFL (Single Tube); (11)Duty: 1/240.
Features
KCS057QV1AJ-G23 features: (1)High Contrast Ratio 40:1; (2)High Brightness 200(cd/m 2); (3)Long Life CFL 40,000(h); (4)Field Replaceable CFL; (5)Wide Temperature 0～60℃.

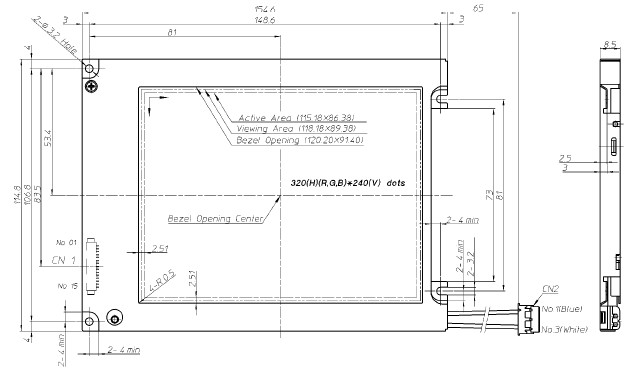

Diagrams
