Product Summary

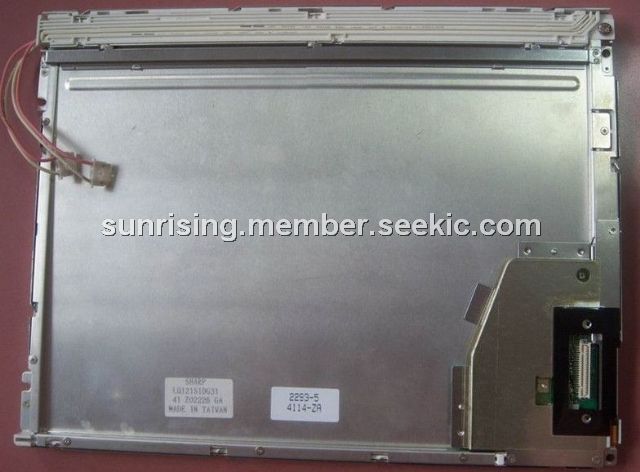

The LQ121S1DG31 is the color TFT-LCD module(FA/POS/Measuring instruments).
Parametrics
LQ121S1DG31 specifications: (1)Brightness: 300 cd/m2; (2)Contrast ratio: 300 : 1; (3)Power consumption: 7.2 W; (4)Outline dimensions: (W x H x D) 276.0 x 209.0 x 14.0 mm; (5)Weight: 775 g; (6)Operating temperature: 0 to +50 ℃; (7)Storage temperature: -25 to +60℃; (8)Display size: 31 [12.1] cm; (9)Dot format (H x V): 800 x RGB x 600 dot; (10)Dot pitch (H x V): 0.1025 x 0.3075 mm; (11)Active area (H x V): 246.0 x 184.5 mm.
Features
LQ121S1DG31 features: (1)31 cm [12.1] SVGA format; (2)Built-in long life CCFT backlight (50 000 h, easily replaceable); (3)Connector is attached from the back of the module; (4)High brightness (300 cd/m2); (5)Wide viewing angle.

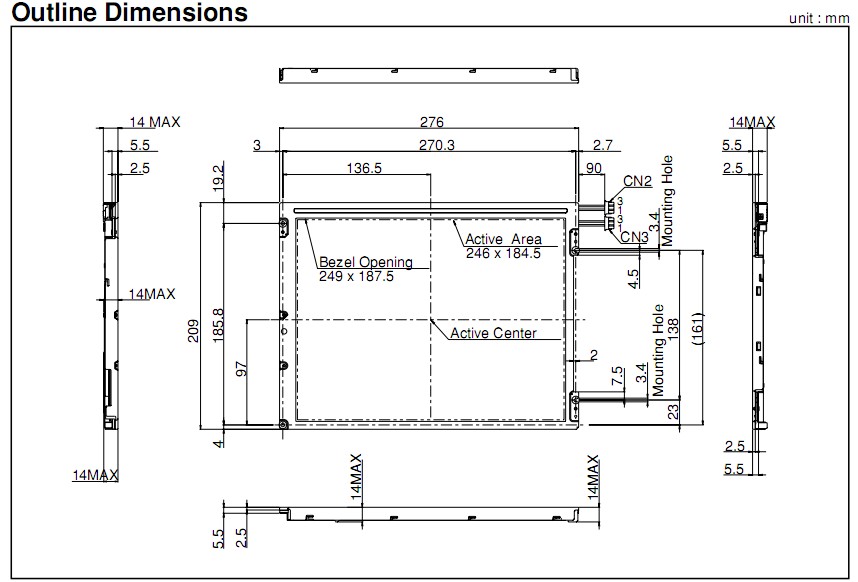

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ121S1DG31 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
