Product Summary

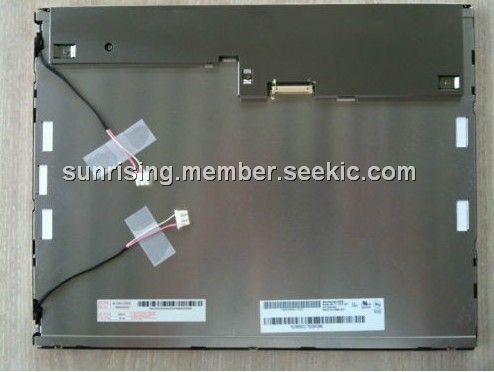

The M150XN07 is a TFT-LCD Module. It supports the XGA (1024(H) × 768(V)) screen format and 262,144 colors (RGB 6-bits data). All input signals are 1 Channel LVDS interface compatible. The M150XN07 does not contain an inverter card for backlight. It is used in desktop monitors.
Parametrics
M150XN07 absolute maximum ratings: (1)Logic/LCD Drive Voltage VDD: min=0.3V, max=+3.6V; (2)Input Voltage of Signal Vin: min=0.3V, max=VDD+0.3V; (3)CCFL Current ICFL: min=3.0mA, max=8.5mA; (4)Operating Temperature TOP: min=0, max=+50℃; (5)Operating Humidity HOP: min=20%RH, max=85%RH; (6)Storage Temperature TST: min=-20℃, max=+60℃; (7)Storage Humidity HST: min=5%RH, max=95%RH; (8)Vibration: max=1.5 / 10-200 G / Hz; (9)Shock: max=50/20 G / ms; (10)Assured Torque at Side Mount: max=2.0 kgf.cm; (11)Re-screw: max=3 Times.
Features
M150XN07 features: (1)XGA 1024(H) × 768(V) resolution; (2)2 CCFLs (Cold cathode Fluorescent Lamp); (3)High contrast ratio, high aperture ratio; (4)Wide viewing angle; (5)High-speed response; (6)Low power consumption.

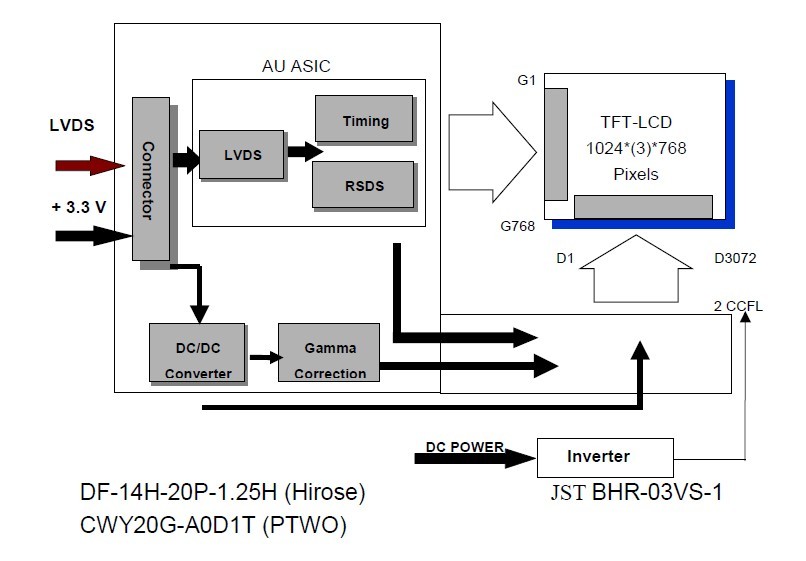

Diagrams
