Product Summary

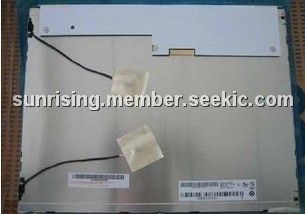

The G150XG01 is a 15.0 inch Color TFT-LCD Module. It supports the XGA (1024(H) × 768(V)) screen format and 262,144 colors (RGB 6-bits data). All input signals are 1 Channel LVDS interface compatible. The G150XG01 does not contain an inverter card for backlight. It is designed for industrial applications.
Parametrics
G150XG01 absolute maximum ratings: (1)Logic/LCD Drive Voltage VDD: min=-0.3 V, max=+3.6 V; (2)Input Voltage of Signal Vin: min=-0.3 V, max=+3.6 V; (3)CCFL Current ICFL: min=2.5 [mA] rms, max=8.5 [mA] rms; (4)Operating Temperature TOP: min=0, max=+50 ℃; (5)Operating Humidity HOP: min=20%RH, max=85%RH; (6)Storage Temperature TST: min=-20 ℃, max=+60 ℃; (7)Storage Humidity HST: min=5%RH, max=95 %RH; (8)Vibration: max=1.5/10-200 G/Hz; (9)Shock: max=50/20 G/ms.
Features
G150XG01 features: (1)XGA 1024(H) × 768(V) resolution; (2)50,000 hours lamp life; (3)2 CCFLs (Cold cathode Fluorescent Lamp); (4)High contrast ratio, high aperture ratio; (5)Wide viewing angle; (6)High-speed response; (7)Low power consumption.

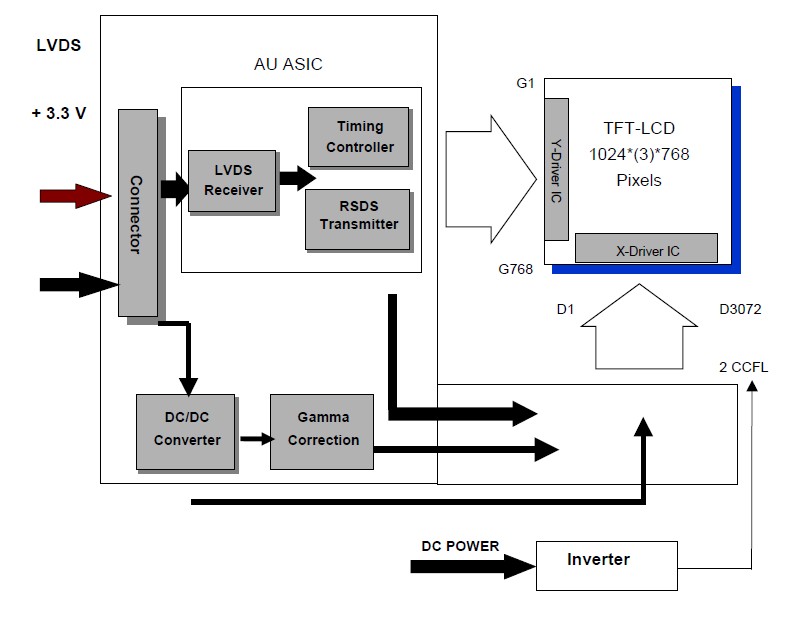

Diagrams
 |
