Product Summary

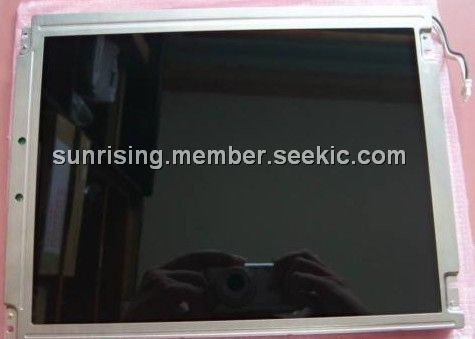

The NL6448BC33-64R is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. It has a built-in backlight. Backlight includes long-life-lamps and the lamps are replaceable. The NL6448BC33-64R is suitable for industrial application use because of the wide viewing angle and the high luminance. The applications of it include: Display terminals for control system, Monitors for process controller, Industrial PCs.

Parametrics

NL6448BC33-64R absolute maximum ratings: (1)Supply voltage VCC: –0.3 to 6.5 V; (2)Input voltage VI: –0.3 to VCC +0.3 V; (3)Lamp voltage VL: 2000 Vrms; (4)Storage temp. TST: –20 to 60 ℃; (5)Operating temp. TOP: 0 to 50 ℃; (6)Humidity(no condensation)RH: ≤ 95% relative humidity(Ta ≤ 40℃); ≤ 85% relative humidity(40 < Ta ≤ 50℃); Absolute humidity shall not exceed Ta = 50℃, 85% relative humidity level(Ta > 50℃).

Features

NL6448BC33-64R features: (1)Wide viewing angle (with Retardation Film); (2)Smooth polarizer surface (No antiglare treatment); (3)High luminance (350 cd/m2, typ.: saturated value, at room temp.); (4)Low reflection; (5)6-bit digital RGB signals; (6)Data enable function; (7)Backlight with two long-life-time lamps (one lamp holder, inverter-less); (8)Lamp holder replaceable; (9)Reversible scan direction (with DPS pin); (10)Replaceable lamp holders; (11)Recommended inverter; (12)Best viewing angle select function (with MVA terminal); (13)Luminance control; (14)Easy to attach a touch panel.

Diagrams

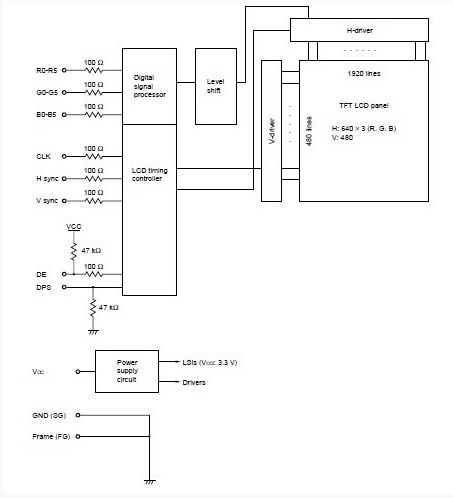

NL6448BC33-64R block diagram
