Product Summary

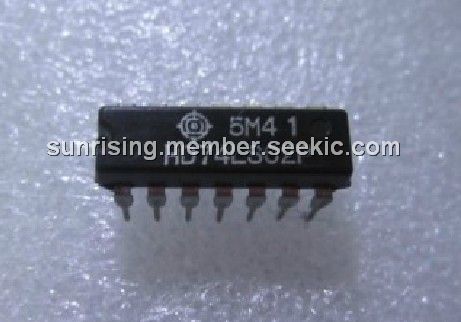

The HD74LS02P is a Quadruple 2-Input Positive NOR Gate.
Parametrics
HD74LS02P aboslute maximum ratings: (1)Supply voltage, VCCNote: 7 V; (2)Input voltage, VIN: 7 V; (3)Power dissipation, PT: 400 mW; (4)Storage temperature, Tstg: -65 to +150℃.
Features
HD74LS02P features: (1)Input voltage, VIH: 2.0V; VIL: 0.8 V ; (2)Output voltage, VOH: 2.7V; VOL: 0.5 V ; (3)Input current, IIH: 20μA; IIL: 0.4 mA; II: 0.1 mA; (4)Short-circuit output current, IOS: -20 to -100 mA; ICCH: 1.6 to 3.2 mA; (5)Supply current, ICCL: 2.8 to 5.4 mA; (6)Input clamp voltage, VIK: -1.5 V.

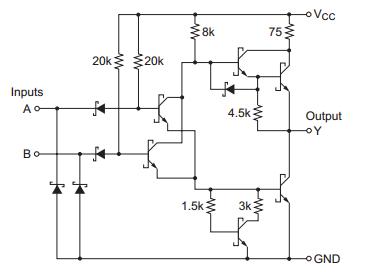

Diagrams
 |
