Product Summary
The LMG7550XUFC is a series of monochrome STN LCD modules with a resolution of 240 x 128 dots. The LMG7550XUFC employs the newest generation of liquid crystal material thus providing an excellent contrast which together with a brightness of 80 cd/sqm renders an outstanding image quality.
Parametrics
LMG7550XUFC absolute maximum ratings: (1)Supply Voltage (Logic): -0 to 7V; (2)Supply Voltage: -0 to 22V; (3)Input Voltage: VSS to VDD V; (4)Operating Temperature: 0 to 50℃; (5)Storage Temperature: -20 to 60℃.
Features
LMG7550XUFC features: (1)Blue on Grey STN Type; (2)Transflective Mode; (3)Low Power EL Backlight; (4)Built in LCD Controller HD61830.

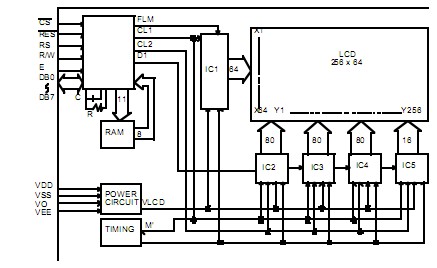

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMG7550XUFC |
Other |
|
Data Sheet |
Negotiable |
|
||||
