Product Summary

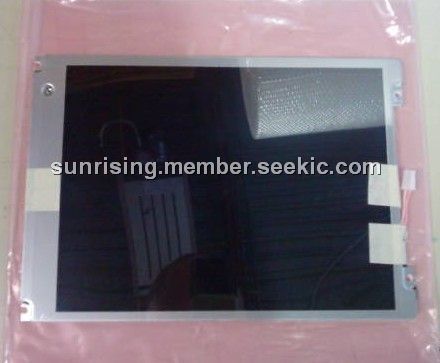

The LB104V03 is a color active matrix liquid crystal display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 10.4 inches diagonally measured active display area with SVGA resolution. The LB104V03 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important. It provides an excellent flat display for office automation products such as Notebook PC.

Parametrics

LB121S03-TD01 absolute maximum ratings: (1)Power Input Voltage VCC: min=-0.3Vdc, max=4.0Vdc; (2)Operating Temperature TOP: min=0, max=50℃; (3)Storage Temperature TST: min=-20℃, max=60℃; (4)Operating Ambient Humidity HOP: min=10%RH, max=90%RH; (5)Storage Humidity HST: min=10%RH, max=90%RH.

Features

LB121S03-TD01 features: (1)Active Screen Size: 10.4 inches(26.42cm) diagonal; (2)Outline Dimension: 236(H) × 180(V) × 10(D) mm; (3)Pixel Pitch: 0.33 mm × 0.33 mm; (4)Pixel Format: 640 horiz. By 480 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Luminance, White: 400 cd/m2(Typ.); (7)Power Consumption: 6.3 Watt(Typ.); (8)Weight: 490 g (Max.); (9)Display Operating Mode: Transmissive mode, normally white; (10)Surface Treatment: Hard coating(3H) Anti-glare treatment of the front polarizer.

Diagrams

LB121S03-TD01 block diagram
