Product Summary

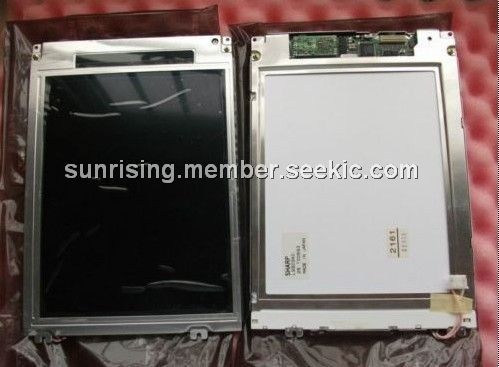

The LQ9D340 is a Color TFT-LCD Module for measuring instruments/banking terminals.
Parametrics
LQ9D340 absolute maximum ratings: (1)Display size: 21 [8.4] cm [ "]; (2)Dot format (H x V): 640 x RGB x 480 dot; (3)Dot pitch (H x V): 0.089 x 0.27 mm ; (4)Active area (H x V): 170.9 x 129.6 mm; (5)Color: 262 144; (6)Input signal: 6-bit Digital RGB; (7)Viewing direction: 6:00; (8)Backlight type: 1CCFT(E); (9)Brightness: 115 cd/m2; (10)Contrast ratio: 100 : 1; (11)Power consumption panel & backlight: 2.7 W; (12)Outline dimensions (W x H x D): 216.0 x 152.4 x 7.3 mm; (13)Weight: 260 g; (14)Operating temperature: 0 to + 50 ℃; (15)Storage temperature: -25 to + 60 ℃.
Features
LQ9D340 features: (1)21 cm [8.4"] VGA format; (2)Wide viewing angle: L/R 120, U/D 90.

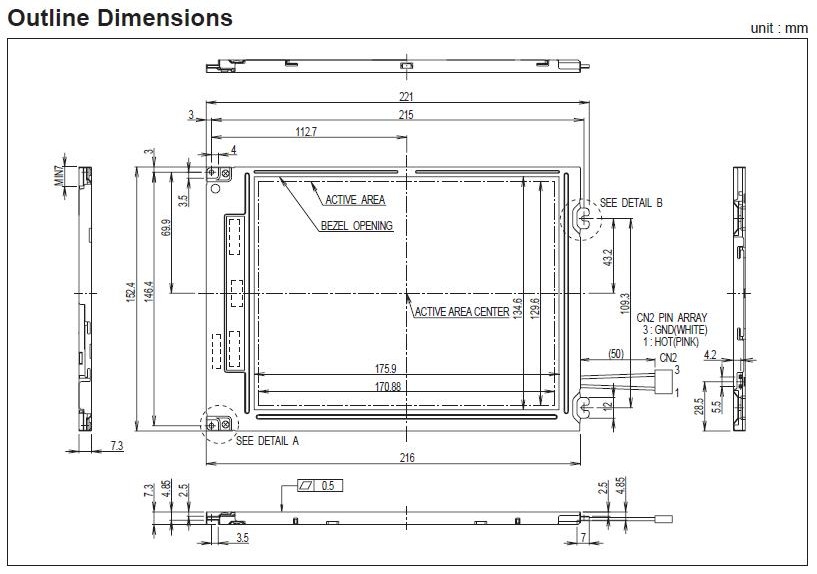

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ9D340 |
Other |
|
Data Sheet |
Negotiable |
|
||||
