Product Summary
The MC14099BCP is an 8–bit addressable latch. Data is entered in serial form when the appropriate latch is addressed (via address pins A0, A1, A2) and write disable is in the low state. For the MC14099BCP the input is a unidirectional write only port. The data is presented in parallel at the output of the eight latches independently of the state of Write Disable, Write/Reador Chip Enable. A Master Reset capability is available on both parts.
Parametrics
MC14099BCP absolute maximum ratings: (1)VDD, DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Vout, Input or Output Voltage Range (DC or Transient): -0.5 to VDD +0.5 V; (3)Iin, Iout, Input or Output Current(DC or Transient) per Pin: ±10 mA; (4)PD, Power Dissipation, per Package: 500 mW; (5)TA, Ambient Temperature Range: -55 to +125℃; (6)Tstg, Storage Temperature Range: -65 to +150℃; (7)TL, Lead Temperature(8–Second Soldering): 260℃.
Features
MC14099BCP features: (1)Serial Data Input; (2)Parallel Output; (3)Master Reset; (4)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (5)Capable of Driving Two Low–power TTL Loads or One Low–Power Schottky TTL Load over the Rated Temperature Range; (6)MC14099B pin for pin compatible with CD4099B.

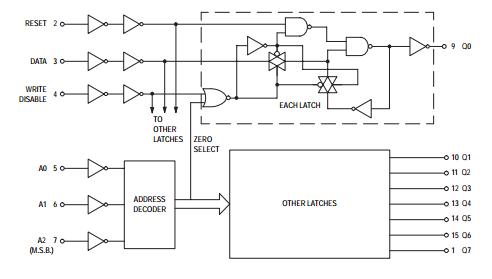

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14099BCP |
ON Semiconductor |
Latches 3-18V 8-Bit |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC14099BCPG |
ON Semiconductor |
Latches 3-18V 8-Bit Addressable |
Data Sheet |
|
|
||||||||||||
