Product Summary
The CD4048BE is an 8-input gate having four control inputs. Three binary control inputs - Ka, Kb, and Kc - provide the implementation of eight different logic functions. These functions are-OR, NOR, AND, NAND, OR/AND, OR/NAND, AND/OR and AND/NOR. A fourth control input, Kd, provides the user with a 3-state output. The applications of the CD4048BE include Selection of up to 8 logic functions, Digital control of logic, General-purpose gating logic, Dacoding, Encoding.
Parametrics
CD4048BE absolute maximum ratings: (1)DC SUPPLY-VOLTAGE RANGE, {V0D), Voltages referenced to Vss terminal: -0.5V to +20V; (2)Input voltage ranoe, all inputs: -0.5V to VDD +0.5V; (3)DC input current, any one input: ±10mA; (4)Power dissipation per package (PD): For TA= -55℃ to +100℃: 500mW; For TA= +100℃ to +125℃: Derate Linearity at 12mW/℃ to 200mW; (5)Device dissipation per output transistor, For TA= full package-temperature range (All Packagd Types): 100mW; (6)Operating-temperature range (TA): -55℃ to +125℃; (7)Storage temperature range(Tslg): -65℃ to +150℃; (8)Lead temperature (during soldering): +265℃.
Features
CD4048BE features: (1)Three-state output; (2)Many Jogic functions available in one package; (3)Standardized, symmetrical output characteristics; (4)100% tested for quiescent current at 20 V; (5)Maximum input current of 1 μA at 18 V (full package temperature range), 100 nA at 18 V and 25℃; (6)Noise margin (full package-temperature range) = 1 V at VDD= 5 V, 2 V at VDD = 10 V, 2.5 V at VDD= 15 V; (7)5-V, 10-V, and 15-V parametric rating; (8)Meets all requirementS of JEDEC Tentative Standard No. 13B "Standard Specifications for Description of Series CMOS Devices".

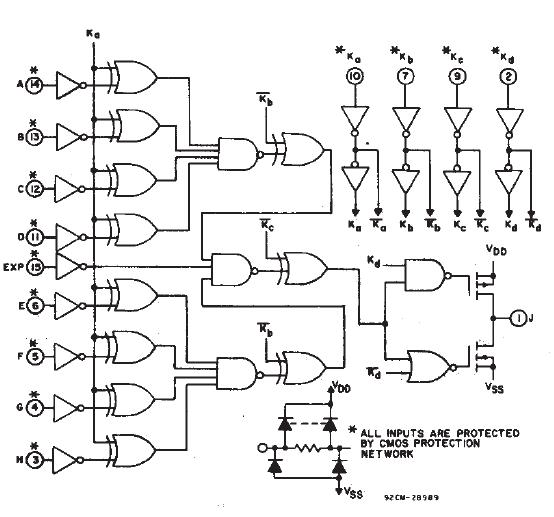

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

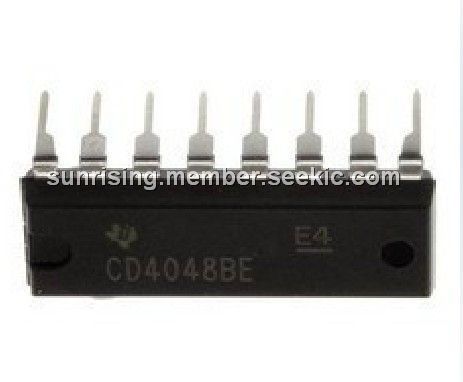

 CD4048BE |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Expandable 8-In Gate |
Data Sheet |
|
|
||||||||||||
|
CD4048BEE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Expandable 8-In Gate |
Data Sheet |
|
|
||||||||||||
