Product Summary

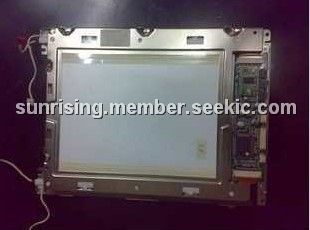

The SHARP LQ9D011 Color TFT-LCD module is an active matrix Liquid Crystal Display (LCD) incorporating amorphous silicon Thin Film Transistor (TFT). The LQ9D011 module is composed of a color TFT-LCD panel, driver ICs, control circuit, and a power supply circuit. Graphics and text can be displayed on a 640 × 3 ×480 dot panel in 512 colors by supplying a 9-bit data signal, four kinds of timing signals, +5 VDC, and supply voltage for the backlight. Optimum viewing angle is at the 6 o clock direction.
Parametrics
LQ9D011 absolute maximum ratings: (1)Input Voltage tA = 25℃: –0.3 to VCC +0.3 V; (2)+5 V Supply Voltage: – 0 .3 t o + 7 V; (3)Storage Temperature: –25 to +60 ℃; (4)perating Temperature (Ambient): – 0 to +50℃.
Features
LQ9D011 features: (1)Display Diagonal: 8.4; (2)Display Format: 640 × 480(1 Pixel = R + G + B Dots); (3)Overall Dimensions: 243.5 (W) × 180 (H) × 12 (D) mm(Excludes Backlight Cables); (4)Active Area: 170.88 (W) × 129.6 (H); (5)Dot Pitch: 0.267 (W) × 0.27 (H) mm; (6)Viewing Angle: 6 O Clock; (7)Pixel Configuration: R, G, B Vertical Stripe; (8)Display Mode: Normally White.

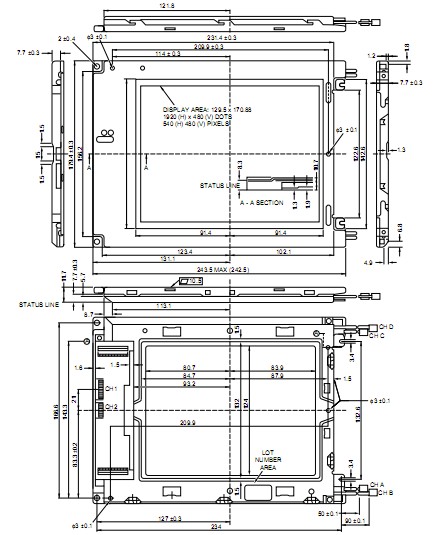

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ9D011 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LQ9D011 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LQ9D340 |
Other |
|
Data Sheet |
Negotiable |
|
||||
