Product Summary

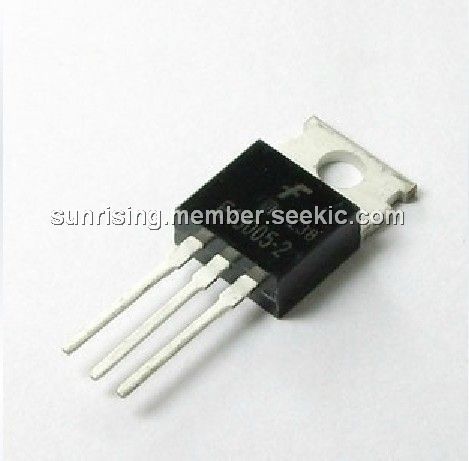

The E13005-2 is an NPN Silicon Power Transistor.
Parametrics
E13005-2 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 700 V; (2)VCEO, Collector-Emitter Voltage: 400 V; (3)VEBO, Emitter-Base Voltage: 9 V; (4)IC, Collector Current (DC): 12 A; (5)ICP, Collector Current (Pulse): 24 A; (6)IB, Base Current: 6 A; (7)PC, Collector Dissipation (TC= 25℃): 130 W; (8)TJ, Junction Temperature: 150℃; (9)TSTG, Storage Temperature: -65 to 150℃.
Features
E13005-2 features: (1)High Speed Switching; (2)Suitable for Switching Regulator and Motor Control.
Diagrams
 |
