Product Summary

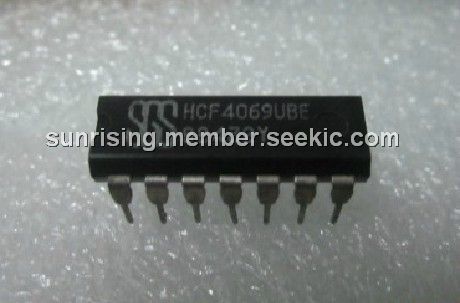

The HCF4069UBE is a HEX inverter. The HCF4069UBE is a monolithic integrated circuit, available in 14-lead dual in-line plastic or ceramic package and plastic micro package. The device consists of six COS/MOS in-verter circuits. This device is intended for all general-purpose inverter applications where the medium-power TTL-drive and logic-level-conver-sion capabilities of circuits such as the HCF4069UBE Hex Inverter/Buffer is not required.
Parametrics
HCF4069UBE absolute maximum ratings: (1)Supply Voltage, VDD: -0.5 to +18V; (2)Input Voltage, Vi: -0.5 to VDD +0.5 V; (3)DC Input Current (any one input), II: ±10 mA; (4)Total Power Dissipation (per package) Dissipation per Output Transistor, Ptot: 200mW; for Top = Full Package-temperature Range, Ptot: 100mW; (5)Operating Temperature, Top: -40 to +85℃; (6)Storage Temperature, Tstg: -65 to + 150℃.
Features
HCF4069UBE features: (1)medium-speed operation-tphl,tplh= 30ns (typ.) at 10v; (2)quiescent current specified to 20v for hcc device; (3)standardized symmetrical output characteristics; (4)5v, 10v, and 15v parametric ratings; (5)input current of 100na at 18v and 25℃ for hcc device; (6)100% tested for quiescent current; (7)meets all requirements of jedec ten-tative standard n°13a, "standard spe-cifications for description of ”b” series cmos devices” .
Diagrams
