Product Summary

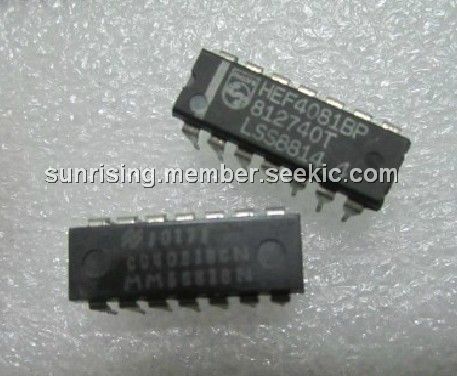

The HEF4081BP is a quad 2-input AND gate. The output is fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS(usually ground). Unused inputs must be connected to VDD, VSS, or another input. The HEF4081BP is suitable for useing over both the industrial (-40℃ to +85℃) and automotive (-40℃ to +125℃) temperature ranges.

Parametrics

HEF4081BP absolute maximum ratings: (1)VDD supply voltage: -0.5 +18 V; (2)IIK input clamping current VI < -0.5 V or VI > VDD + 0.5 V: ±10 mA; (3)VI input voltage: -0.5 VDD +0.5 V; (4)IOK output clamping current, VO < -0.5 V or VO > VDD +0.5 V: ±10 mA; (5)II/O input/output current: ±10 mA; (6)IDD supply current: 50 mA; (7)Tstg storage temperature: -65 +150℃; (8)Tamb ambient temperature: -40 +125℃.

Features

HEF4081BP features: (1)Fully static operation; (2)5 V, 10 V, and 15 V parametric ratings; (3)Standardized symmetrical output characteristics; (4)Inputs and outputs are protected against electrostatic effects; (5)Operates across the automotive temperature range -40℃to +125℃; (6)Complies with JEDEC standard JESD 13-B.

Diagrams

HEF4081BP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HEF4081BP,652
HEF4081BP,652

NXP Semiconductors

Gates (AND / NAND / OR / NOR) QUAD 2-IN AND GATE

Data Sheet

0-1: $0.11
1-25: $0.10
25-100: $0.10
100-250: $0.09
