Product Summary

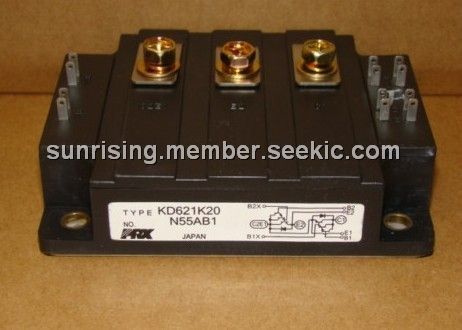

The powerex dual darlington transistor KD621K20 is a high power device designed for use in switching applications. The KD621K20 is isolated, consisting of two darlington transistors with each transistor having a reverse parallel connected high speed diode.
Parametrics
KD621K20 absolute maximum ratings: (1)Junction temperature: -40 to 150℃; (2)Storage temperature: -40 to 125℃; (3)Collector Emitter sustaining voltage: 1000V; (4)Collector base voltage: 1000V; (5)Emitter base voltage: 7V; (6)Collector emitter voltage: 1000V; (7)diode forward current: 200A; (8)continuous base current: 10A; (9)diode surge current: 2000A; (10)Power dissipation: 1560W; (11)Module weight: 870g; (12)V isolation: 2500V.
Features
KD621K20 features: (1)Isolated mounting; (2)planar chips; (3)Discrete fast recovery feedback diode; (4)high gain; (5)quick connect base emitter signal terminals; (6)base emitter speed up diodes.

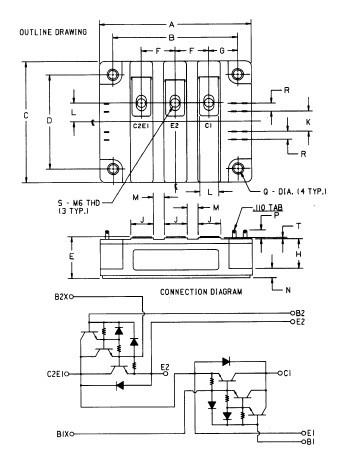

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KD621K20 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
KD621K20 |
Other |
|
Data Sheet |
Negotiable |
|
||||
