Product Summary
The M48Z08-100PC1 is a 64 Kbit ZEROPOWER SRAM. The M48Z08-100PC1 is an 8K x 8 non-volatile static RAM which is pin and functional compatible with the DS1225. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory solution. The M48Z08-100PC1 is a non-volatile pin and function equivalent to any JEDEC standard 8K x 8 SRAM. It also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special write timing or limitations on the number of writes that can be performed.
Parametrics
M48Z08-100PC1 absolute maximum ratings: (1)Ambient Operating Temperature, TA: 0 to 70℃; (2)Storage Temperature (VCCOff, Oscillator Off), TSTG: -40 to 85℃; (3)Lead Solder Temperature for 10 seconds, TSLD: 260℃; (4)Input or Output Voltages, VIO: -0.3 to 7 V; (5)Supply Voltage, VCC: -0.3 to 7 V; (6)Output Current, IO: 20 mA; (7)Power Dissipation, PD: 1 W.
Features
M48Z08-100PC1 features: (1)Integrated, ultra low power sram and power-fail control circuit; (2)Unlimited write cycles; (3)Read cycle time equals write cycle time; (4)Automatic power-fail chip deselect and write protection; (5)Write protect voltages (VPFD= Power-fail Deselect Voltage): M48Z08: VCC= 4.75 to 5.5V 4.5V ≤VPFD ≤4.75V; (6)Self-contained battery in the caphat dip package; (7)Pin and function compatible with JEDEC STANDARD 8K x 8 SRAMs; (8)RoHS compliance Lead-free components are compliant with the RoHS Directive.

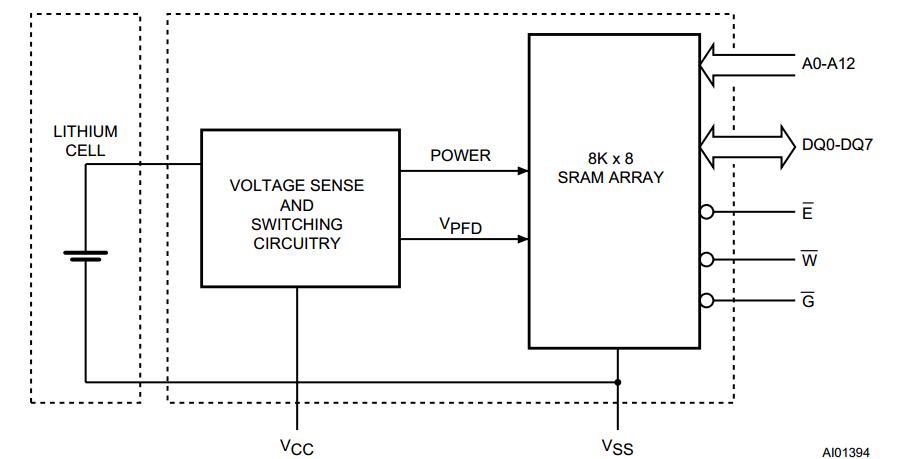

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M48Z08-100PC1 |
STMicroelectronics |
NVRAM 64K (8Kx8) 100ns |
Data Sheet |
|
|
|||||||||||||
