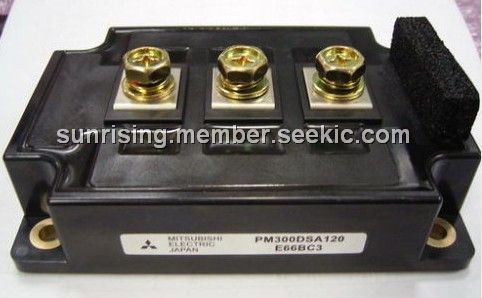

The PM300DSA120 is a Mitsubishi intelligent power module.
Parametrics
PM300DSA120 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Case Operating Temperature TC: -20 to 100 ℃; (4)Mounting Torque, M6 Mounting Screws: 3.92~5.88 N · m; (5)Mounting Torque, M8 Main Terminal Screws: 8.83~10.8 N · m; (6)Module Weight (Typical): 910 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part) VCC(prot.): 800 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
PM300DSA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Current; Over Temperature; Under Voltage.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM300DSA120 |
|
MOD IPM DUAL 1200V 300A |
Data Sheet |
Negotiable |
|
||||||
