Product Summary

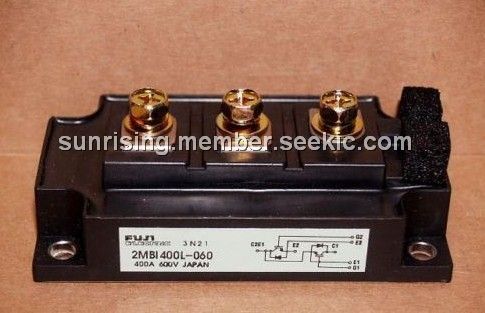

The 2MBI400L-060 is an IGBT Module.
Parametrics
2MBI400L-060 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 600V; (2)Gate-Emitter voltage VGES: ±20V; (3)Collector current, Continuous IC: 400A; 1ms IC pulse: 800A; (4)Max. power dissipation PC: 1600W; (5)Operating temperature Tj: +150℃; (6)Storage temperature Tstg: -40 to +125℃; (7)Isolation voltage Vis: AC 2500V (1min.).
Features
2MBI400L-060 features: (1)High speed switching; (2)Low Saturation; (3)Voltage Drive.

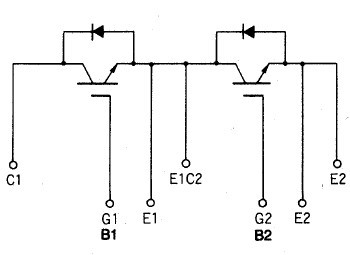

Diagrams
 |
