Product Summary
The AT28C17-15PI is a low-power, high-performance Electrically Erasable and Program-mable Read Only Memory with easy to use features. The AT28C17-15PI is a 16K memory organized as 2,048 words by 8 bits. The device is manufactured with Atmel’s reliable nonvolatile CMOS technology. The AT28C17-15PI is accessed like a static RAM for the read or write cycles without the need of external components. During a byte write, the address and data are latched in-ternally, freeing the microprocessor address and data bus for other operations. Following the initiation of a write cy-cle, the device will go to a busy state and automatically clear and write the latched data using an internal control timer.
Parametrics
AT28C17-15PI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC +0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.
Features
AT28C17-15PI features: (1)Fast Read Access Time - 150 ns; (2)Fast Byte Write - 200μs or 1 ms; (3)Self-Timed Byte Write Cycle, Internal Address and Data Latches; Internal Control Timer; Automatic Clear Before Write; (4)Direct Microprocessor Control, DATA POLLING; READY/BUSY Open Drain Output; (5)Low Power, 30 mA Active Current; 100μa CMOS Standby Current; (6)High Reliability, Endurance: 104 or 105 Cycles; Data Retention: 10 Years; (7)5V ±10% Supply; (8)CMOS & TTL Compatible Inputs and Outputs; (9)JEDEC Approved Byte Wide Pinout; (10)Commercial and Industrial Temperature Ranges.

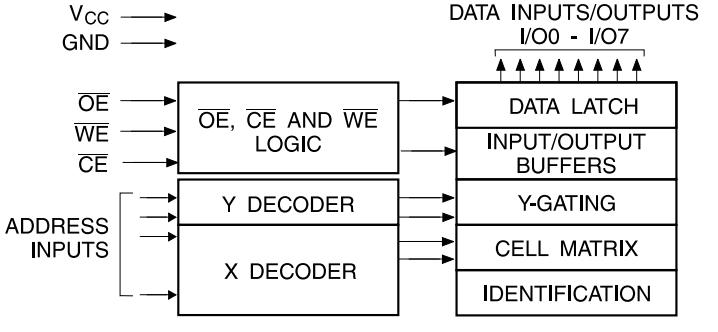

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
AT28C17-15PI |
Atmel |
IC EEPROM 16K 5V 28DIP |
Data Sheet |
Negotiable |
|
|||||
