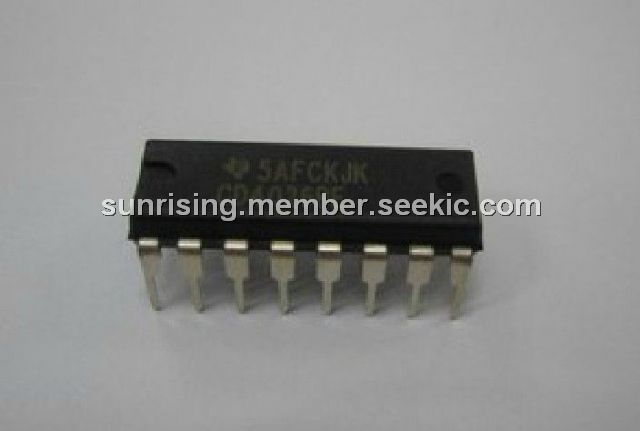

Product Summary
The CD4026BE is a CMOS decade counter/divider. The CD4026BE is particularly advantageous in display applications where low power dissipation and low package count are important. A high RESET signal clears the decade counter to its zero count. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. The applications of the CD4026BE include: decade counting 7-segment decimal display, frequency division 7-segment decimal displays, clock, watches, tlmers, counter/display driver for meter applications.
Parametrics
CD4026BE absolute maximum ratings: (1)DC supply-voltage range(VDD)voltages referenced to VSS terminal: -0.5V to +20V; (2)Input voltage range, all input: -0.5V to VDD + 0.5V; (3)DC input current, any one input: ±10mA; (4)Power dissipation per package(PD) for TA=-55℃ to +100℃: 500mW; (5)Device dissipation per output transistor for TA=full package-temperature range(all package types): 100mW; (6)Operating temperature range(TA): -55℃ to +125℃; (7)Storage temperature range(Tstg): -65℃ to +150℃.
Features
CD4026BE features: (1)Counter and 7-segment decoding in one package; (2)Easily interfaced with 7-segment display types; (3)Fully static counter operation: DC to 6 MHz (typ.) at VDD = 10 V; (4)Ideal for low-power displays; (5)Display enable output (CD4026B); (6)Ripple blanking and lamp test (CD4033B); (7)100% tested for quiescent current at 20 V; (8)Standardized, symmetrical output characteristics; (9)5-V, 10-V, and 15-V parametric ratings; (10)Schmitt-triggered clock inputs.

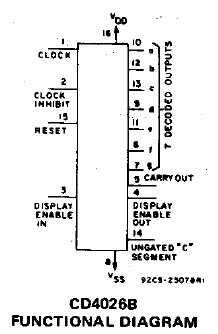

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4026BE |
Texas Instruments |
Counter ICs Decade/Divider |
Data Sheet |
|
|
||||||||||||
|
CD4026BEE4 |
Texas Instruments |
Counter ICs CMOS Decade Counter/ Divider |
Data Sheet |
|
|
||||||||||||
