Product Summary

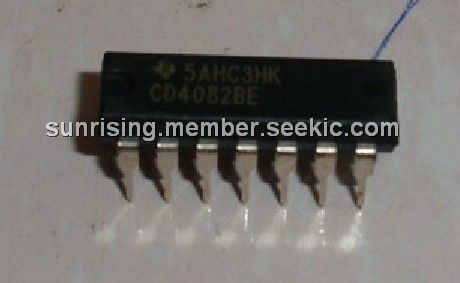

The CD4082BE is a CMOS and gate, provides the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates. The CD4082BE is supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Parametrics

CD4082BE absolute maximum ratings: (1)DC SUPPLY-voltage(Vdd) Voltages referferenced to Vss Terminal): -0.5V to +20V; (2)Input voltage range, all inputs: -0.5V to VDD +0.5V; (3)DC inpot curftent, any oneinput: ±10mA: 500mW; For Ta=100℃ to +125℃: Derate LirwarHy at 12mW/℃ to 200mW; (4)device dissipation per output transistor, FOR TA= FULL package-temperature range (All Package Types): l00mW; (5)Operating-temperature range (TA): -55℃ to +125℃; (6)STORAGE TEMPERATURE RANGE (Tstg): -65℃ to +150℃; (7)Lead temperature (during soldering): At distance 1/16 ± 1 /32 inch (1.59 ± 0,79mm) from for 10s max: +265℃.

Features

CD4082BE features: (1)Medium-Speed Operation — tpLH, tpHL = 60 ns (typ.) at VDD = 10V ; (2)100% tufted lor quiescent current at 20 V; (3)Maximum input current of 1 fiA at 18 V over full package-temperature range; 100 nA at 18 V and 25℃Noise margin (full package-temperature range)- 1V at VDD = 5 V; 2V at VDD= 10 V; 2.5 V at VDD = 15 V; (4)Standardjzed, symmetrical output, characteristics; (5)5-V,10-V, and 15-V parametric ratings; (6)Mteti aH requirements of JEDEC Tentative StarMtard No, 13D, "Standard Specifications for Description of "B" Series CMOS Devices".

Diagrams

CD4082BE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CD4082BE
CD4082BE

Texas Instruments

Gates (AND / NAND / OR / NOR) Dual 4-Input

Data Sheet

0-1: $0.25
1-25: $0.21
25-100: $0.16
100-250: $0.16
CD4082BEE4
CD4082BEE4

Texas Instruments

Gates (AND / NAND / OR / NOR) Dual 4-Input

Data Sheet

0-1: $0.28
1-25: $0.21
25-100: $0.18
100-250: $0.12
