Product Summary
The PM50RHA120 is a power module. The deivce is suitable for general purpose inverter, servo drives and other motor controls.
Parametrics
PM50RHA120 absolute maximum ratings: (1)VCC, supply voltage: 900V; (2)VCC(surege), supply voltage (supply): 1000V; (3)VCE, collector-emitter voltage: 1200V; (4)±IC, collector current: 50A; (5)±ICP, collector curretn (peak): 100A; (6)PC, collector dissipation: 416W; (7)Tj, junction temperature: -20 to 150℃.
Features
PM50RHA120 features: (1)3Φ 50A, 1200V current-sense IGBT type inverter; (2)monolithic gate drive & protection logic; (3)detection, protection & statusindication circuits for over-current, short-circuit, over-temperature & under-voltage; (4)acoustic noise-less 7.5kW class inverter applicatios; (5)UL recognized.

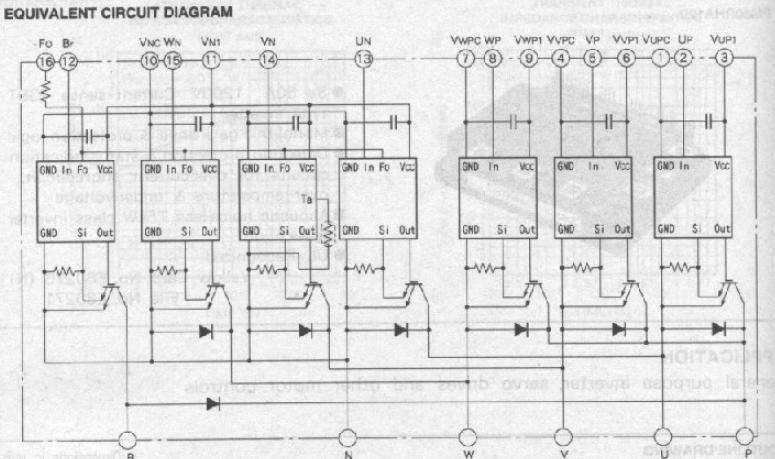

Diagrams
 |
