Product Summary

The 6SVP100M Isolated Resistor Termination Network offers high integration and performance in a miniature QSOP or SOIC package, which saves critical board area and provides manufacturing cost and reliability efficiencies. Why thin film resistor networks. A terminating resistor is used to reduce or eliminate unwanted reflections on a transmission line or in some cases provide DC pull-up/pull-down. 6SVP100M can perform this function only when its resistance value is closely matched to the characteristic impedance of the transmission line. The 6SVP100M used for terminating transmission lines must be noiseless, stable, and functional at high frequencies. Unlike thin film-based resistor networks, conventional thick film resistors used for this purpose are not stable over temperature and time, and may have functional limitations when used in high frequency applications.

Parametrics

6SVP100M Specifications: (1)Category temperature range: -55℃ to +105℃; (2)Tolerance on rated capacitance (120Hz): M : ±20%; (3)Tangent of loss angle(tanδ) (120Hz): Less that or equal to the value of Table4; (4)Leakage current (μA/2min)(or less) ※1: Less that or equal to the value of Table4; (5)ESR (100k to 300kHz): Less that or equal to the value of Table4; (6)Characteristics at high temp. and low temp. Impedance ratio at 100kHz, +20℃: -55℃; (7)Endurance 105℃, 2,000h Rated voltage applied (25WV→20V): 1.5 or less times of an initial standard; (8)Damp heat (Steady state) (60℃, 90 to 95%RH, 1,000h no; (9)voltage): Within ±20%; (10)Solder heat resistance (VPS) ※2 (230℃ X 75s): Within ±10%.

Diagrams

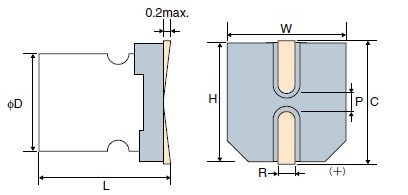

6SVP100M Dimensions
